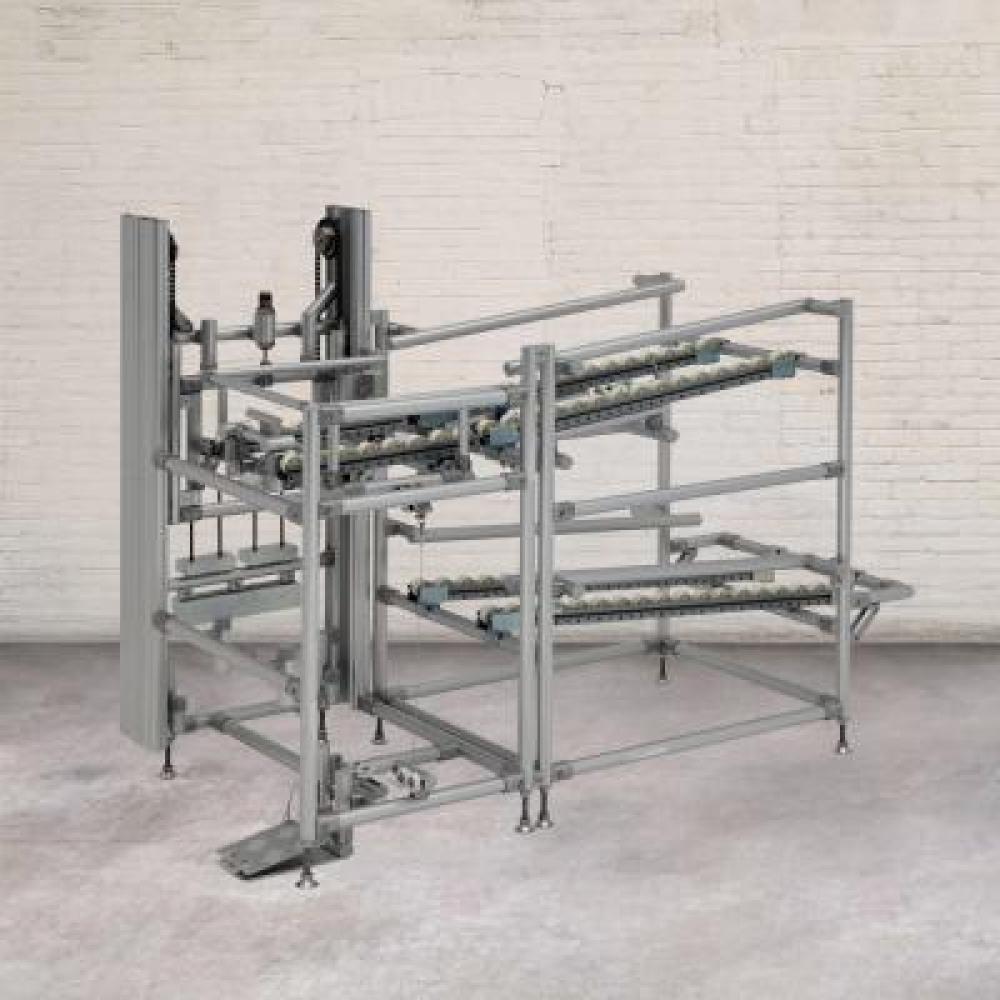

·  The mechanism can make the revolving box with parts to achieve single box separation into the empty box horizontal elevator type downward discharge, and the workbench back to the original height, automatic supply of the next revolving box.

·  After the revolving box with parts is separated into the workbench, press the pedal, the lifting action locking mechanism is released, and the workbench is lowered.

·  The seesaw mechanism is triggered when the table falls to the lowest point, forming a tilt Angle, and the revolving box is discharged under the action of gravity and flow bar.

·  The table discharging the turnover box rises back to its original position under the counterweight set on the lifting guide rail module, the separation stop mechanism is relieved, and the next turnover box slides automatically to the work table.

Through the special dynamics simulation and according to the actual use condition, make the exclusive scheme.
